Network roadmaps are already looking beyond 1.6T toward modules capable of 3.2 terabits per second. When they study this step, they do not simply double the previous design. The electrical interface, lane count, modulation method, optical source, packaging, cooling, fiber connection, and test strategy may all need to change to support the higher aggregate rate.
The demand comes largely from AI and hyperscale fabrics where switch capacity is rising quickly. More bandwidth per port can reduce the number of parallel links needed for a given traffic target, but it also concentrates power and failure impact. They therefore evaluate 3.2T as a system architecture with operational consequences, both as a component milestone.
Next-generation photonic applications may use the 3.2T optical transceiver to connect very high-radix switches and dense accelerator clusters. They expect its success to depend on whether optical components can preserve bandwidth and loss margins while module makers control heat, channel uniformity, assembly yield, and field-replacement requirements.
Aggregate Throughput Forces a New Optical-Engine Strategy
A 3.2T module may combine many high-speed optical lanes within one engine. This increases the importance of channel matching, laser distribution, fiber alignment, electrical skew, and production test.
They examine how a failure in one lane is handled, whether partial operation is possible, and how diagnostics identify problems without replacing healthy neighboring channels.

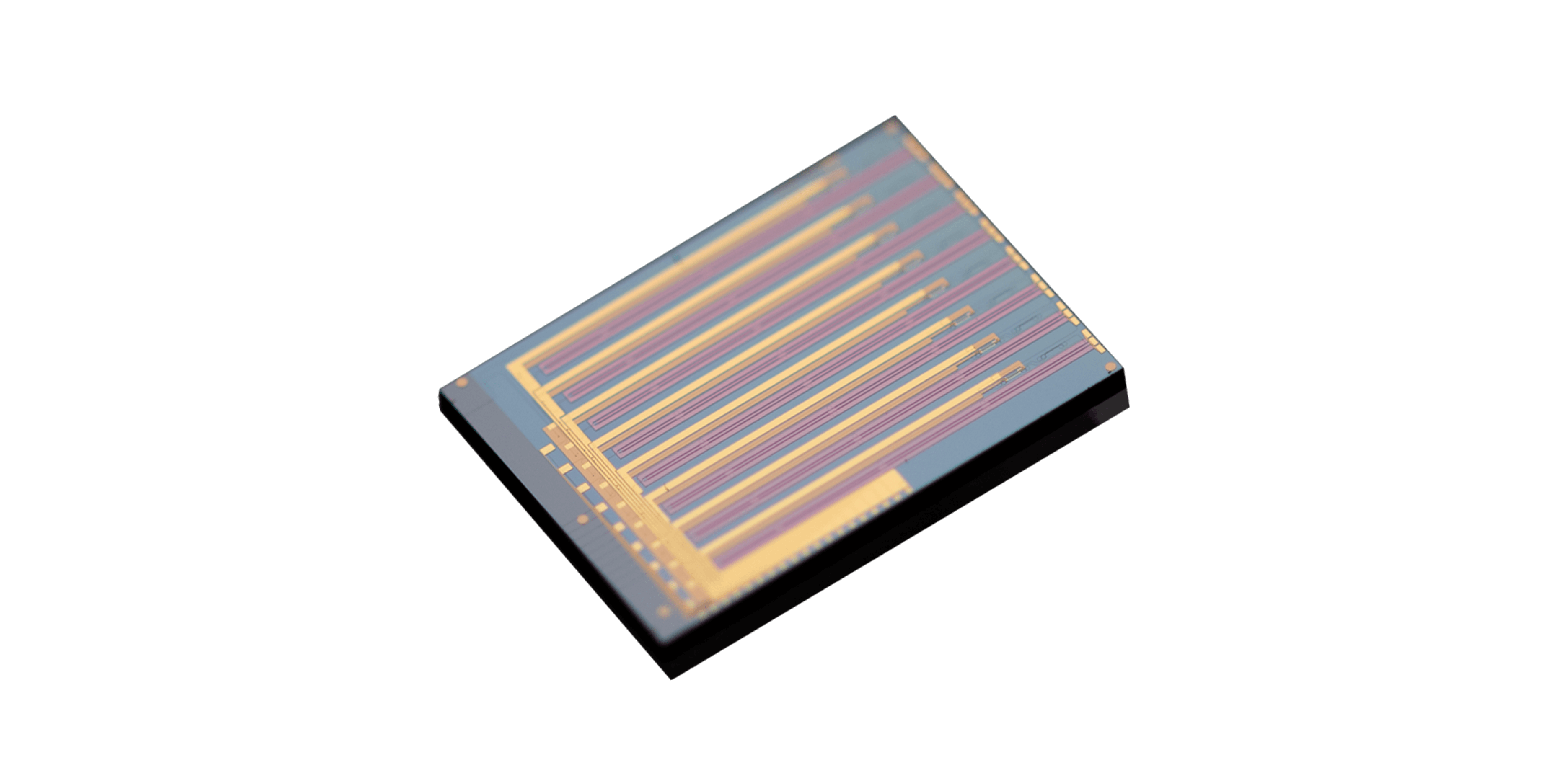

On its applications page, Liobate says the TFLN platform can enable a single-continuous-wave-laser-driven 3.2T architecture. For photonic applications, a shared source may reduce duplicated laser components, while multi-channel modulation can support compact integration.
The design must still account for power splitting, source reliability, coupling loss, and the consequences of common-mode failure. The 3.2T optical transceiver will place strong demands on modulators.
Bandwidth must support the selected lane rate, drive voltage must be compatible with available electronics, and insertion loss must leave enough optical margin after splitting and packaging. They model these variables together because an apparent gain in density can be offset by higher laser or cooling requirements.
Electrical Reach and Thermal Density Drive Integration
Electrical reach becomes more difficult as switches operate at faster lane rates. Long traces between switching silicon and a pluggable module can consume signal margin and equalization power.
This is one reason co-packaged and near-packaged optical approaches receive attention: moving optical conversion closer to the switch may shorten electrical paths, although it changes service and manufacturing models.
Liobate includes co-packaged optics among related data-center directions. For those photonic applications, high-bandwidth TFLN devices may help, but they compare the integration options carefully.
Pluggable modules provide familiar replacement and inventory practices, whereas closer integration may improve electrical efficiency at the cost of more complex field repair and thermal coordination. A 3.2T optical transceiver also concentrates heat in a limited area.
They evaluate package power, switch power, airflow impedance, heat-sink design, inlet temperature, and worst-case port population. Thermal performance must be demonstrated under sustained traffic because intermittent laboratory tests may not reveal throttling, drift, or neighboring-port interactions in a full system.
Commercial Readiness Depends on the Supporting Ecosystem
Commercial readiness requires a complete component ecosystem. Lasers, modulators, drivers, detectors, converters, connectors, fibers, and test equipment must all reach appropriate yield and capacity.
They map material suppliers and qualification schedules early, since a module design cannot enter volume production when one specialized process remains available in small research quantities.
The 3.2T optical transceiver will also need agreed interfaces and interoperability methods. Photonic applications grow faster when host vendors, module makers, cable suppliers, and test companies can work from stable definitions.
They participate in early trials while keeping production commitments tied to demonstrated compatibility rather than projections alone. Liobate can be assessed for the modulation portion of this ecosystem. They would review the company’s 3.2T-oriented TFLN chip data, package strategy, channel uniformity, sample availability, and volume plan.
The evaluation should connect device specifications with a realistic optical engine and show which performance margins remain after assembly. Test economics will become increasingly important.
A device with many high-speed lanes can require expensive equipment and long test cycles, which directly affect module cost and production capacity. They look for parallel test strategies, built-in diagnostics, and calibrated reference methods that preserve coverage while keeping throughput realistic for the expected volume.
Business analysis should consider reduced port count, switch utilization, cabling, power per bit, and operational risk. A 3.2T link may lower infrastructure cost at scale, but early products could carry higher module, cooling, and spare costs. They use scenario models so procurement decisions remain aligned with actual traffic and deployment timing.
They expect mixed generations to coexist. Some routes will continue using 800G or 1.6T, while traffic-intensive connections prioritize 3.2T. This phased approach allows network teams to learn about thermal behavior, reliability, diagnostics, and supply before applying newer modules across multiple racks or facilities.
Before a 3.2T program commits to volume, prototype optical engines need to demonstrate stable thermal and signal margins across representative units. Liobate can enter that work as a candidate whose results are compared against the same budgets and production criteria.
